Product Information
- Project Name : age and Land Preparation Combined Operation Machine...
- Category : Tillage Implements

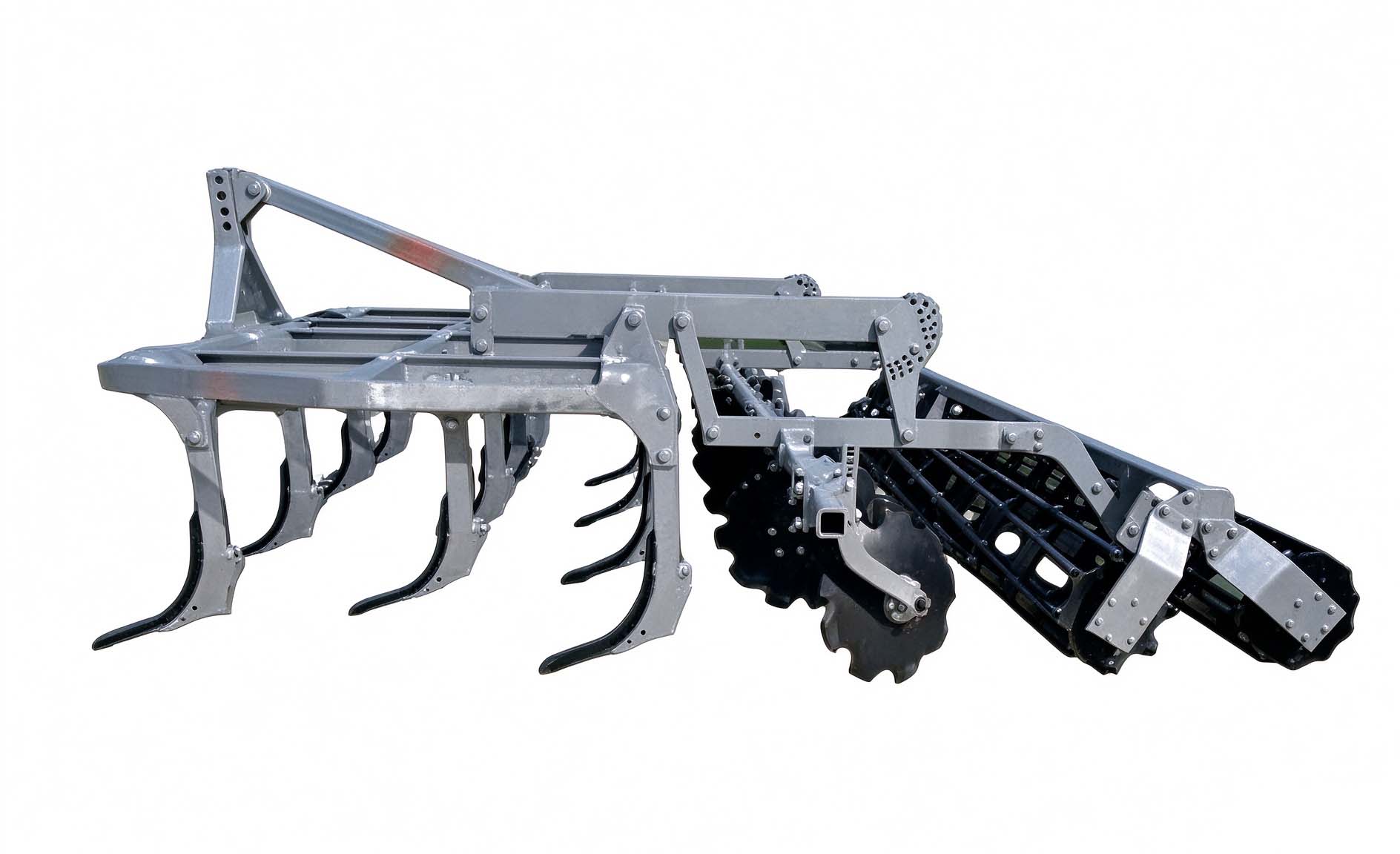

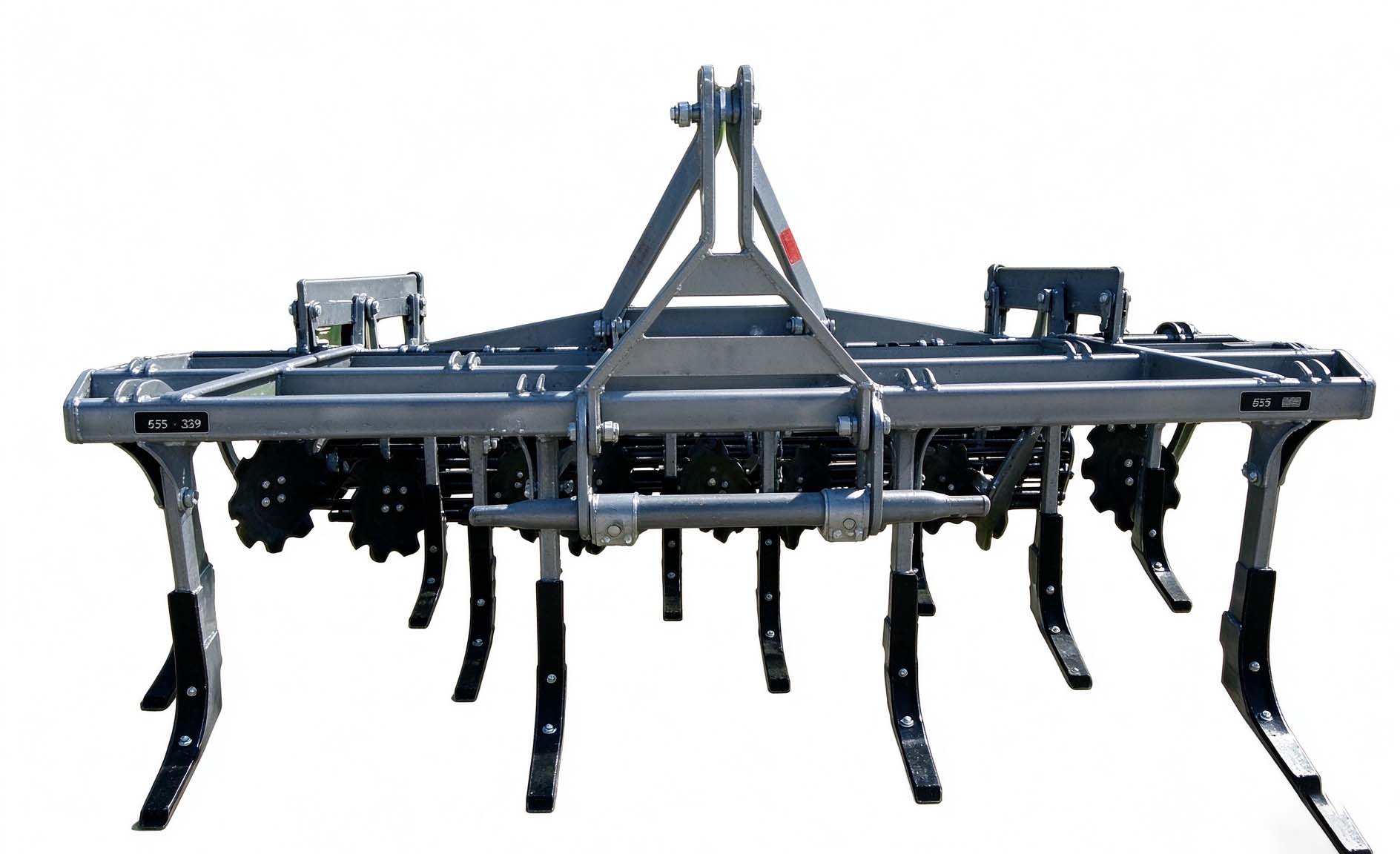

1ZLS-3.5 Deep Tillage and Land Preparation Combined Operation Machine
1ZLS-3.5 Deep Tillage and Land Preparation Combined Operation Machine
This machine can complete deep loosening, stubble breaking and soil leveling in one pass. It breaks the plow pan, improves soil permeability and saves operation cost. Matched with high-horsepower tractors, widely used for farmland tillage.
Deep Tillage and Land Preparation Combined Operation Machine
• Quality Creates Value
| Item | Parameter |
|---|---|
| Model | 1ZLS-420/350/250 |
| Number of work rows | 5 |
| Working speed | 6-8km/h |
| Structure | Imported alloy steel hook |
| Working efficiency | hm²/h |
| Working width (m) | 2.80-3.50 |
| Frame type | Integrated |
| Transport width (m) | 2.80-3.50 |
| Number of subsoil teeth | 7-9-13 |
| Number of subsoil tooth rows | 2 rows, 3 rows |
| Main frame | 100*100mm |
| Gear arm ground clearance | 0.80m |
| Plow tip | Double-headed interchangeable plow tip (wing-shaped shovel tip is optional) |
| Tilling depth (cm) | 5-40 |
| Power (Hp) | 160-220 |
Main performance The maximum tillage depth can reach 40cm, and the working width is 2.8-3.5m. The automatic reset protection device is suitable for plots with many stones, while the safety bolt protection device is suitable for plots with few or no stones. Different equipment can be selected for the rear of the frame: single-row harrow, V-type double-row harrow, X-type double-row harrow, soil crusher, and single-row harrow with soil crusher.
